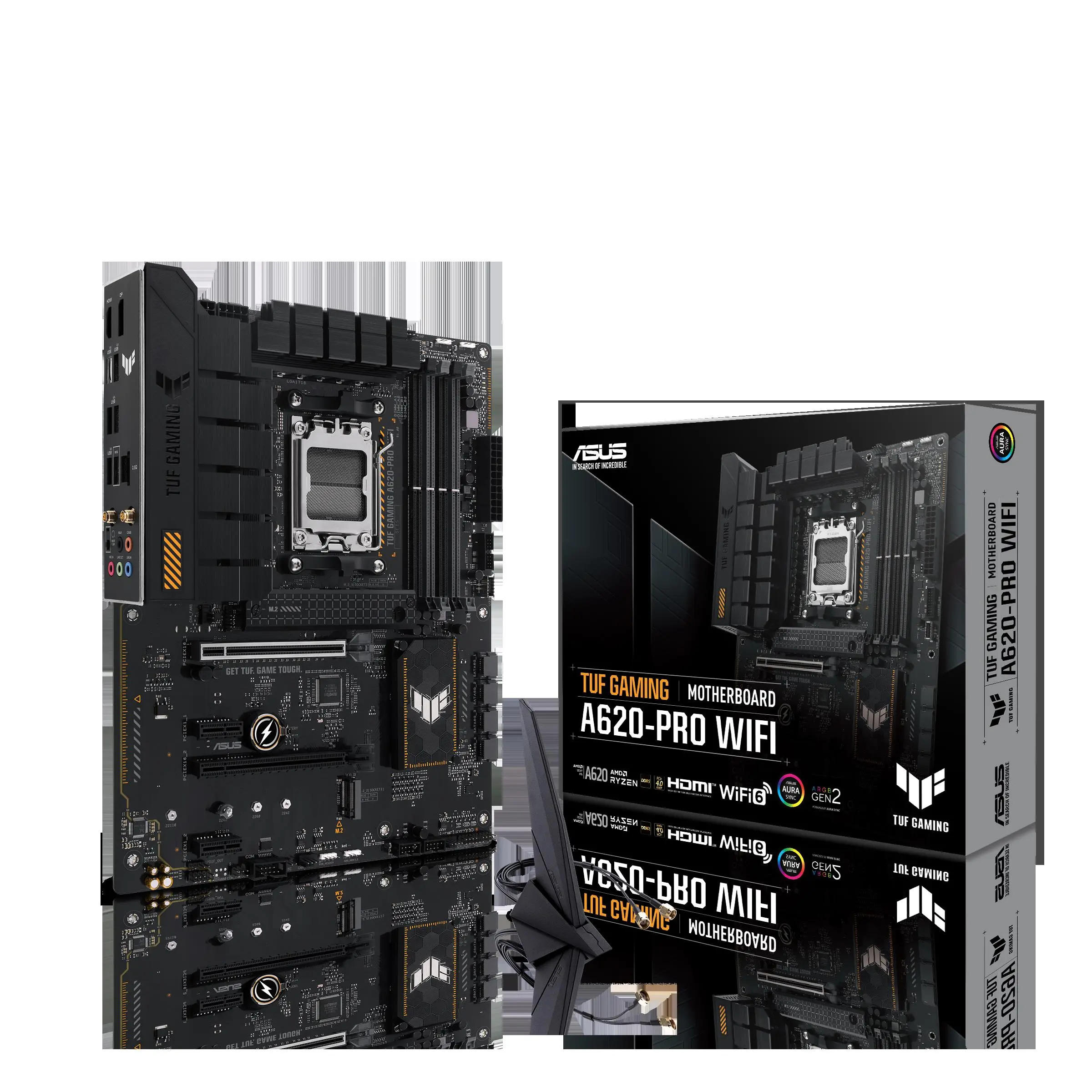

90MB1FR0-M0EAY0 TUF GAMING A620-PRO WIFI AMD

ModelTUF GAMING A620-PRO WIFICPUAMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors** Refer to www.asus.com for CPU support list.ChipsetAMD A620 ChipsetMemory4 x DIMM slots, Max. 192GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports AMD EXTended Profiles for Overclocking (EXPO™)OptiMem II* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.Graphics1 x DisplayPort**1 x HDMI™ port**** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.** Supports max. 8K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI 2.1. Expansion SlotsAMD Ryzen™ 7000 Series Desktop Processors*1 x PCIe 4.0 x16 slot (supports x16 mode)AMD A620 Chipset1 x PCIe 3.0 x16 slot (supports x2 mode)**2 x PCIe 3.0 x1 slots* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).** PCIEX16_2 slot will be disabled when either of the PCIEX1 slots is populated.- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*AMD Ryzen™ 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)AMD A620 Chipset4 x SATA 6Gb/s ports* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.Ethernet1 x Realtek 2.5Gb EthernetTUF LANGuardWireless & BluetoothWi-Fi 61x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth® v5.3USBRear USB (Total 6 ports)2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)1 x USB 3.2 Gen 1 (5G) port (1 x USB Type-C®)3 x USB 2.0 ports (3 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsAudioRealtek 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layersBack Panel I/O Ports2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)1 x USB 3.2 Gen 1 (5G) port (1 x USB Type-C®)3 x USB 2.0 ports (3 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port5 x Audio jacks1 x BIOS FlashBack™ buttonInternal I/O ConnectorsFan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x 20-3 pin System Panel header with Chassis intrude functionSpecial FeaturesASUS TUF PROTECTION- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards- TUF LANGuard- Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/OASUS Q-Design- M.2 Q-Latch- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProCool- Pre-mounted I/O shield- SafeDIMMAura Sync- Aura RGB header- Addressable Gen 2 headersSoftware FeaturesASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 4- Power Saving- Two-Way AI Noise CancellationAI Suite 3- TurboV EVO- DIGI+ VRM- PC CleanerTUF GAMING CPU-ZMyASUSNorton 360 for Gamers (60 Days Free Trial)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeBIOS256 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEAccessoriesCables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS Wi-Fi moving antennas1 x TUF Gaming sticker1 x M.2 Rubber Package1 x Screw package for M.2 SSDDocumentation1 x TUF Certification card1 x User guideOperating SystemWindows® 11, Windows® 10 64-bitForm FactorATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
