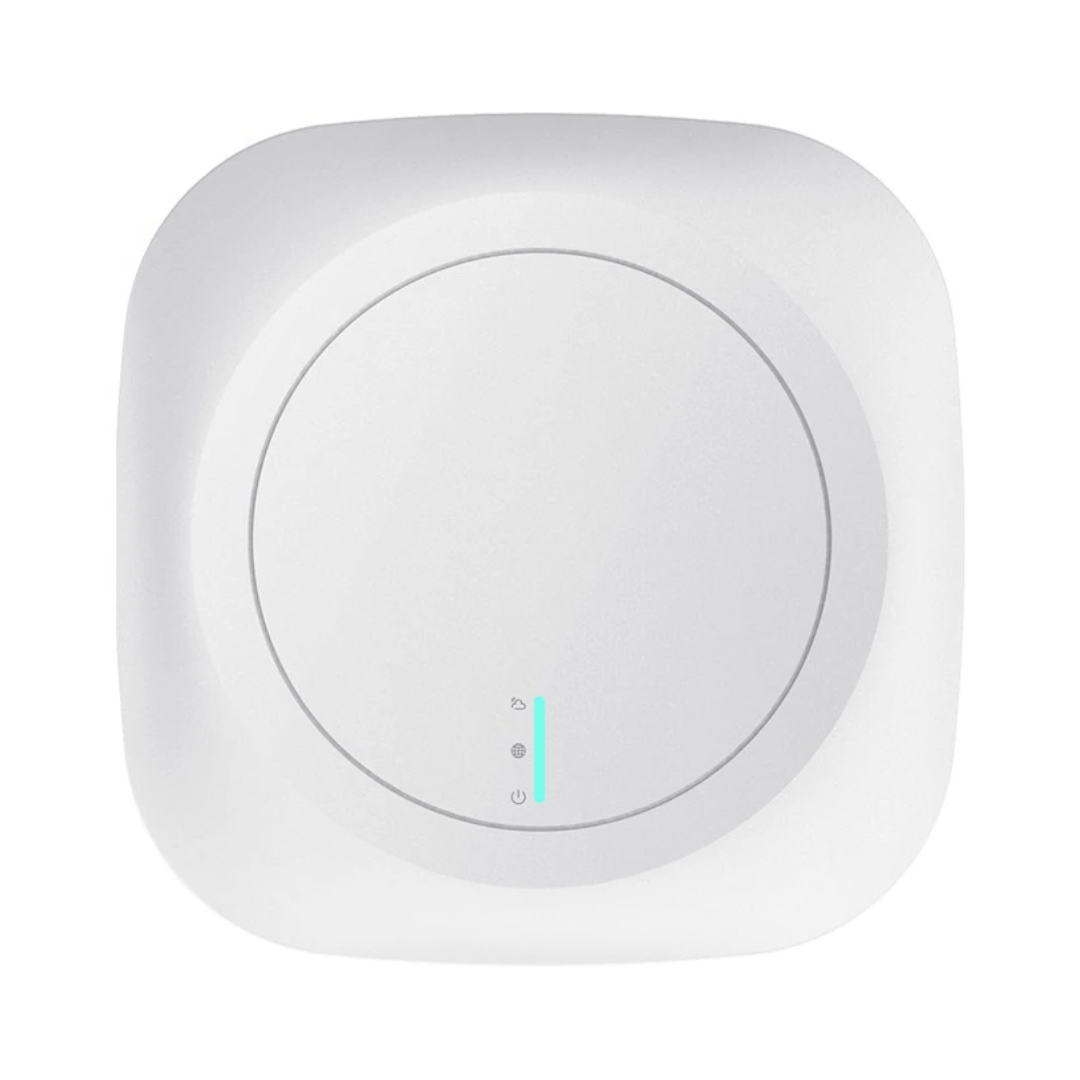

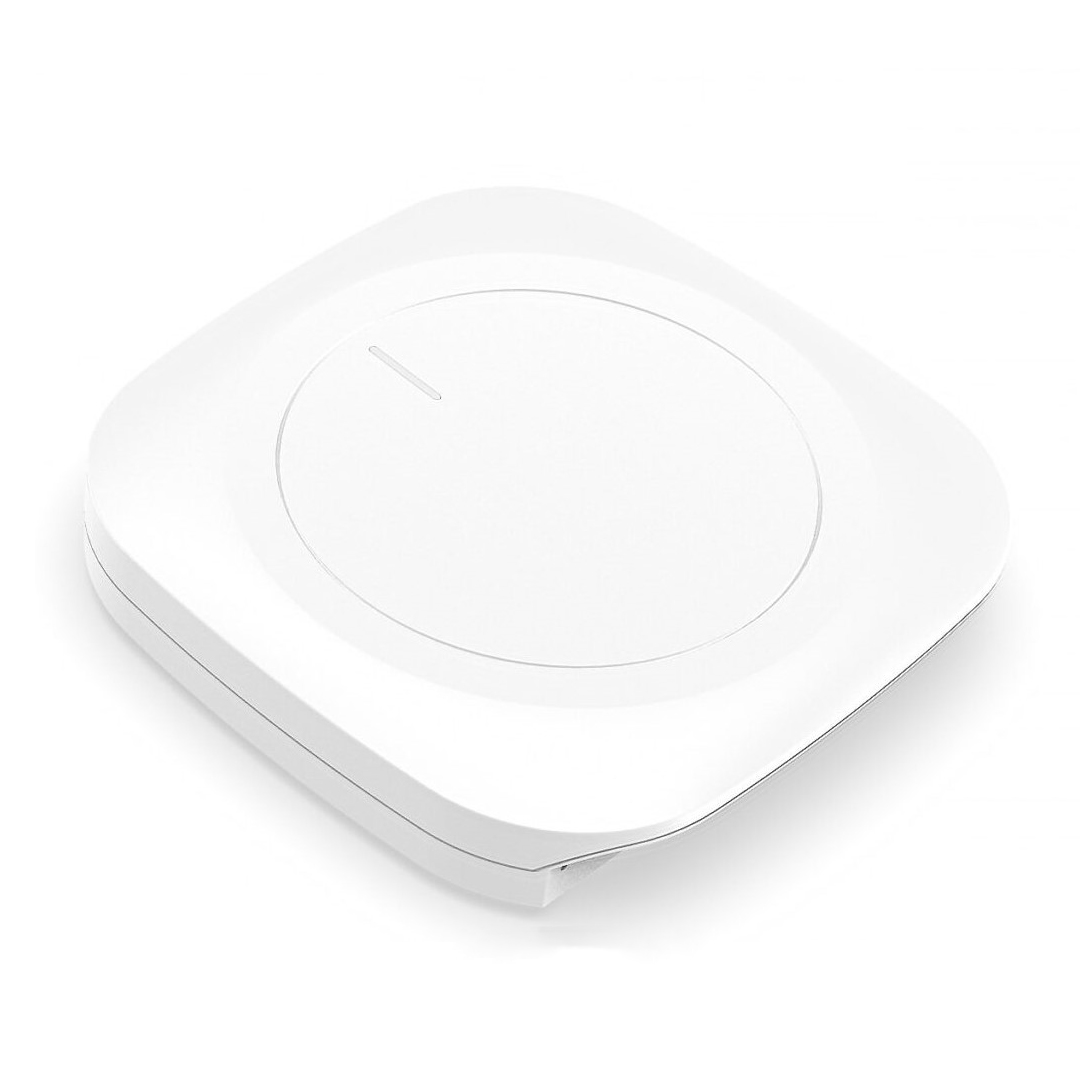

MKGW1-BW Pro Bluetooth Gateway
MKGW1-BW Pro is a multi-wireless IoT Gateway with Bluetooth Low Energy (BLE) and Wi-Fi. It captures data from BLE 5 peripherals and send it to Internet MQTT/HTTP Server or local TCP/UDP Server over Wi-Fi or Ethernet.
The Gateway is a great option to connect your Bluetooth applications without compromising cost or security.
• Bluetooth 5 – 1M/2M PHY, Coded PHY(long range)
• Support AWS/Azure/Google/Alibaba IoT Cloud platforms
• More than 150m Bluetooth scanning range (1M PHY and open area)
• Up to 319 Beacon packets scanned per second
• Recognize and parse Apple iBeacon, Google Eddystone and MOKO Beacon protocols intelligently
• Cloud remote monitoring and configuring the Gateway (Cloud Management)
Intelligent Bluetooth 5 Connection to Cloud
Used in conjunction with Bluetooth Beacons or other devices and no matter in hospital, school, factory, shopping mall, government department, the smart MKGW1-BW Pro Gateway helps you easily manage employees, assets and sensors.
Multiple Network Connectivities
Support Wi-Fi or Ethernet to connect the Internet and can access the world standard MQTT (SSL & Proxy)/HTTP (SSL/TLS)/TCP/UDP network Server such as AWS/Azure/Google/Alibaba IoT Cloud platforms.
Simple Operation and Easy Deployment
Easy to install and provides a variety of power modes to ensure that you can use it in a variety of situations.
The friendly Web GUI console and remote Cloud Management facilitate to configure the Gateway and achieve your IoT application quickly.
MKGW1-BW Pro Bluetooth Gateway
SMART Configuration
Web GUI - Gateway user interface
Cloud management
Filter Beacon packets
By RSSI/ MAC address/ BLE name/ raw data
Bluetooth scanning filter logic
Regular expression
Parse Beacon protocols
Apple iBeacon
Google Eddystone - UID, URL, TLM
MOKO Beacon
Beacon data format
JSON array/ Hexadecimal
Offline storage
Store Beacon packets on a USB flash drive
BLE connection
Auto PHY and up to 8 BLE peripherals can be connected

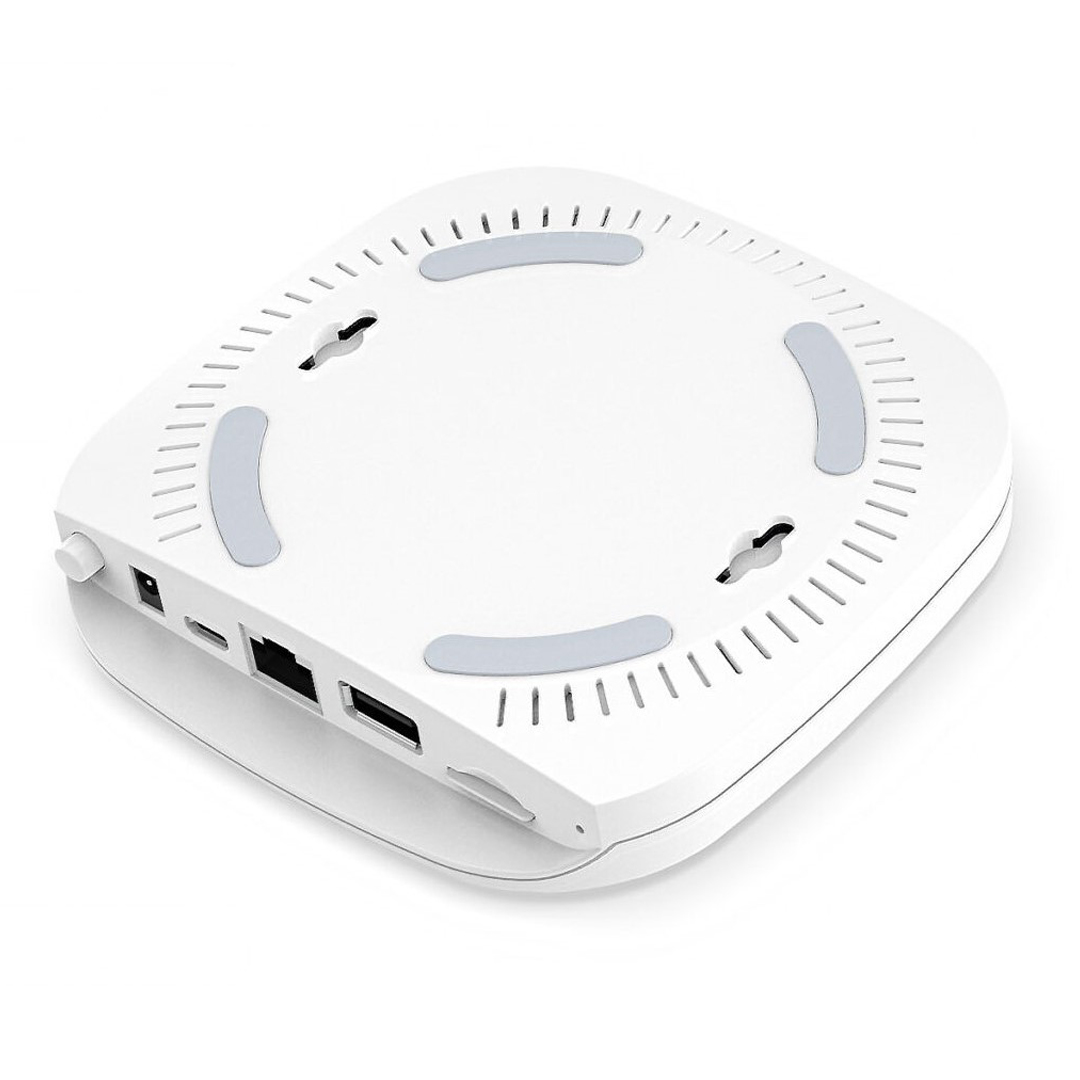

Power Supply
Micro USB: 5V/ 1A
DC Port: 9-12V/ 1A
PoE: IEEE 802.3af
GENERAL/DESIGN
Dimensions: 120 x 120 x 22.5 mm
Weight: 136g
Material: ABS-FR
Color: White
Installation: Horizontal, wall or ceiling mount
Protection rating: IP20, UL94 V0
Operating temperature: -20°C to 45°C
Storage temperature: -40°C to 70°C
Humidity: Maximum 95% non-condensing RH
CONNECTIVITY
Bluetooth: Nordic nRF52833 Cortex-M4F, Bluetooth 5.0 - 1M, 2M, Coded PHY
Wi-Fi: IEEE 802.11 b/g/n, 1T1R with 150Mbps PHY
RF antenna: Bluetooth 2.4GHz 4.2dBi FPC antenna, Wi-Fi 2.4GHz 5dBi FPC antenna
Internet connection: WLAN/Ethernet
Network failover: Yes
Server access
MQTT (SSL/TLS, socks5 proxy)
HTTP (SSL/TLS)
TCP/UDP
Certifications
Regulatory: USA (FCC), Europe (CE, REACH, RoHS)
Customization: All worldwide certifications can be customized
