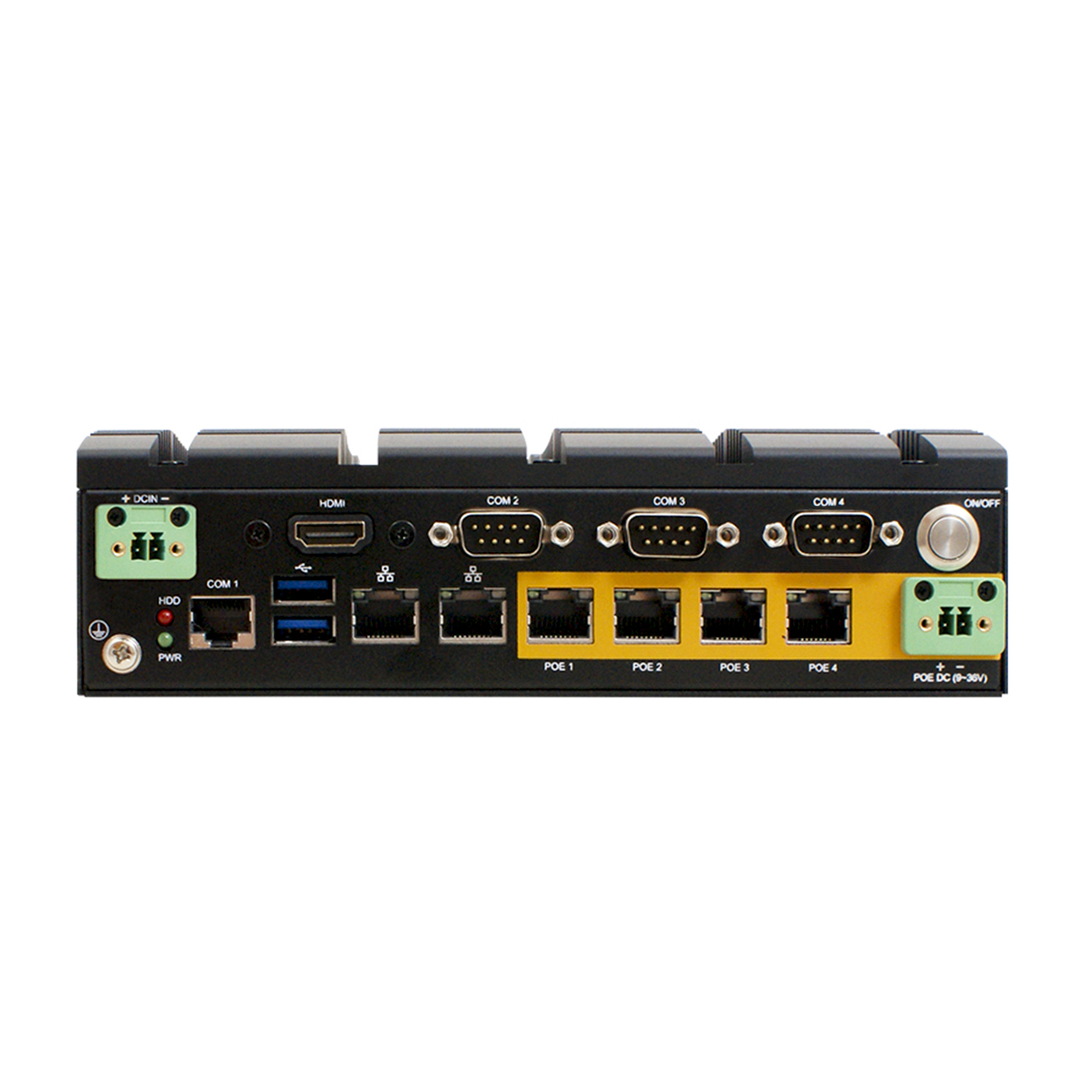

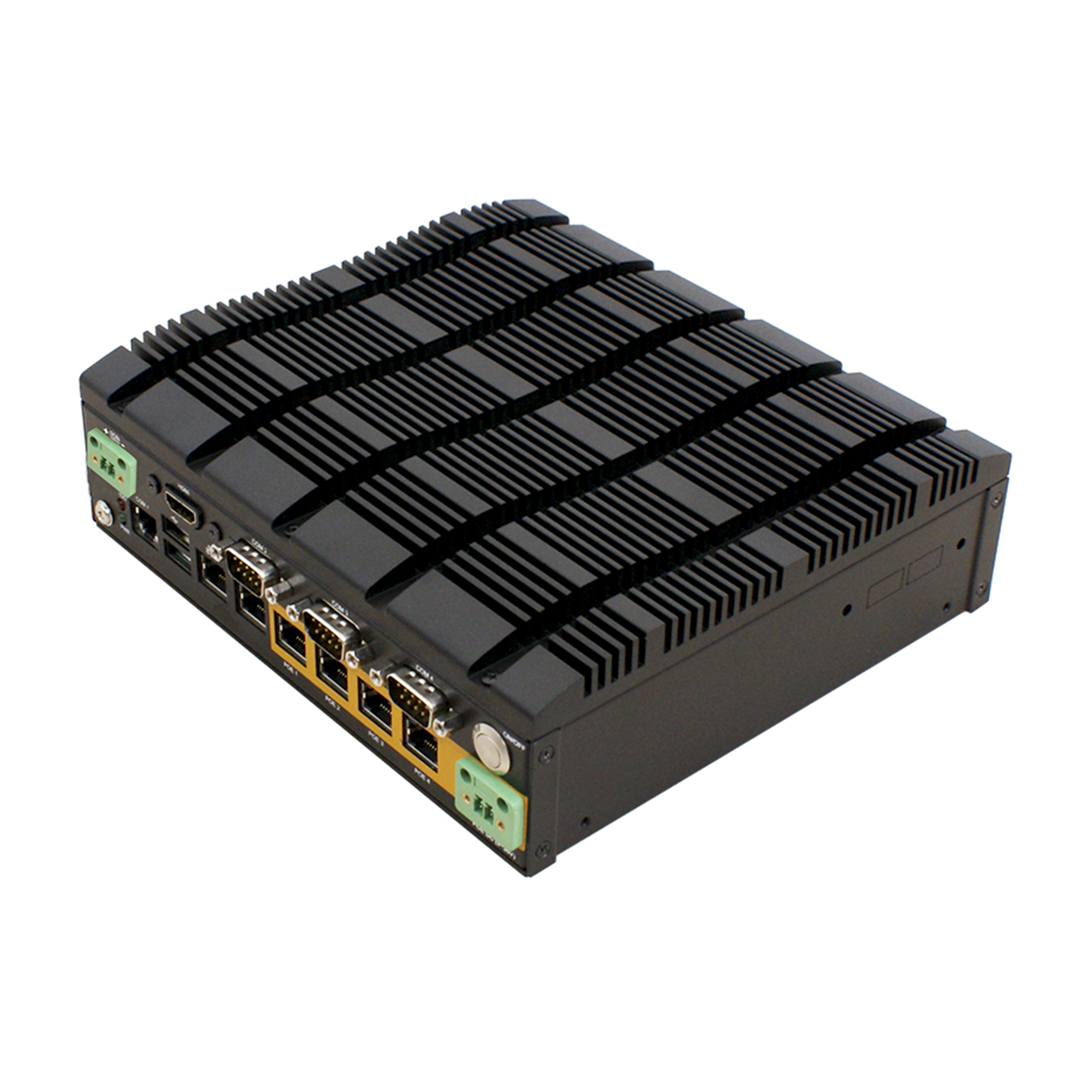

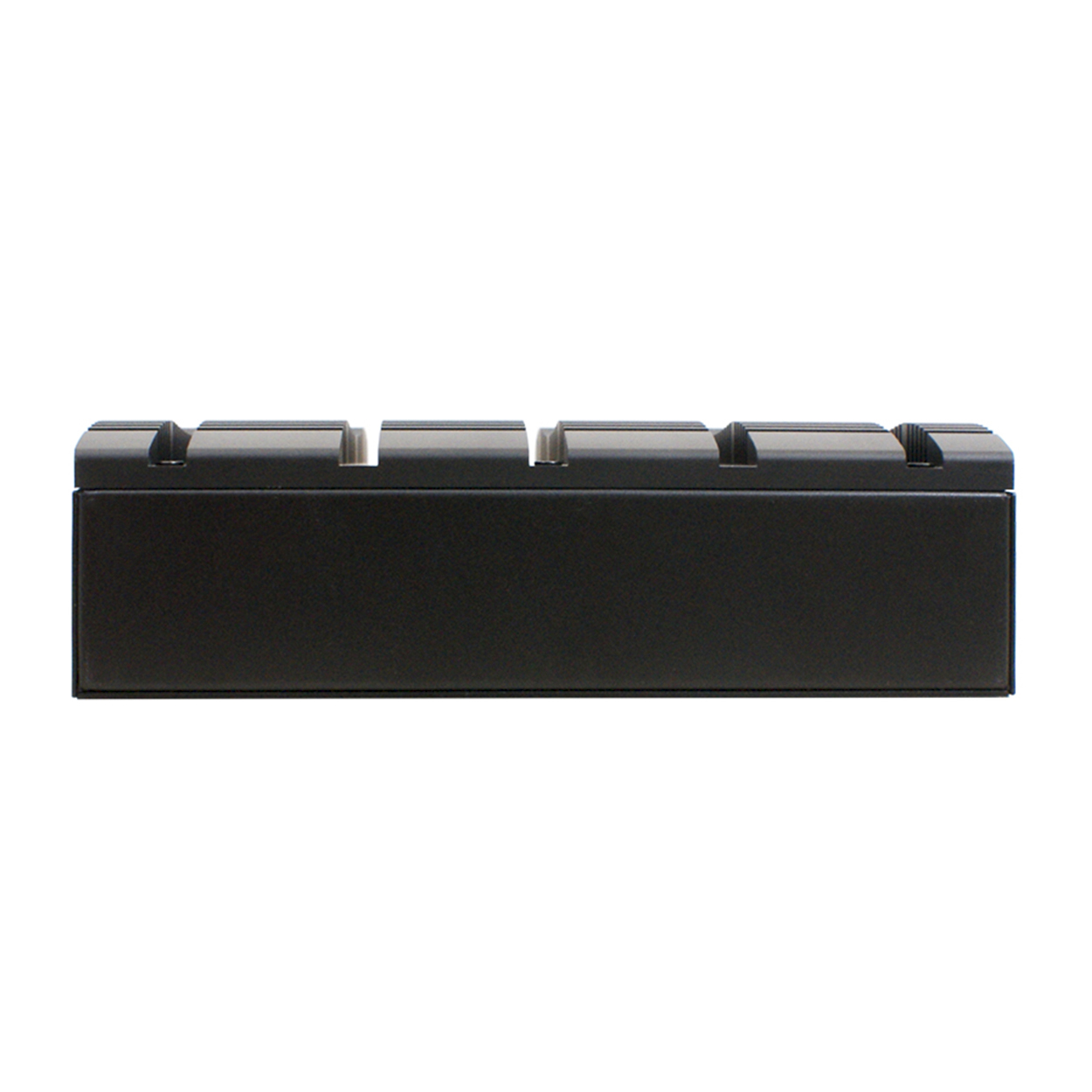

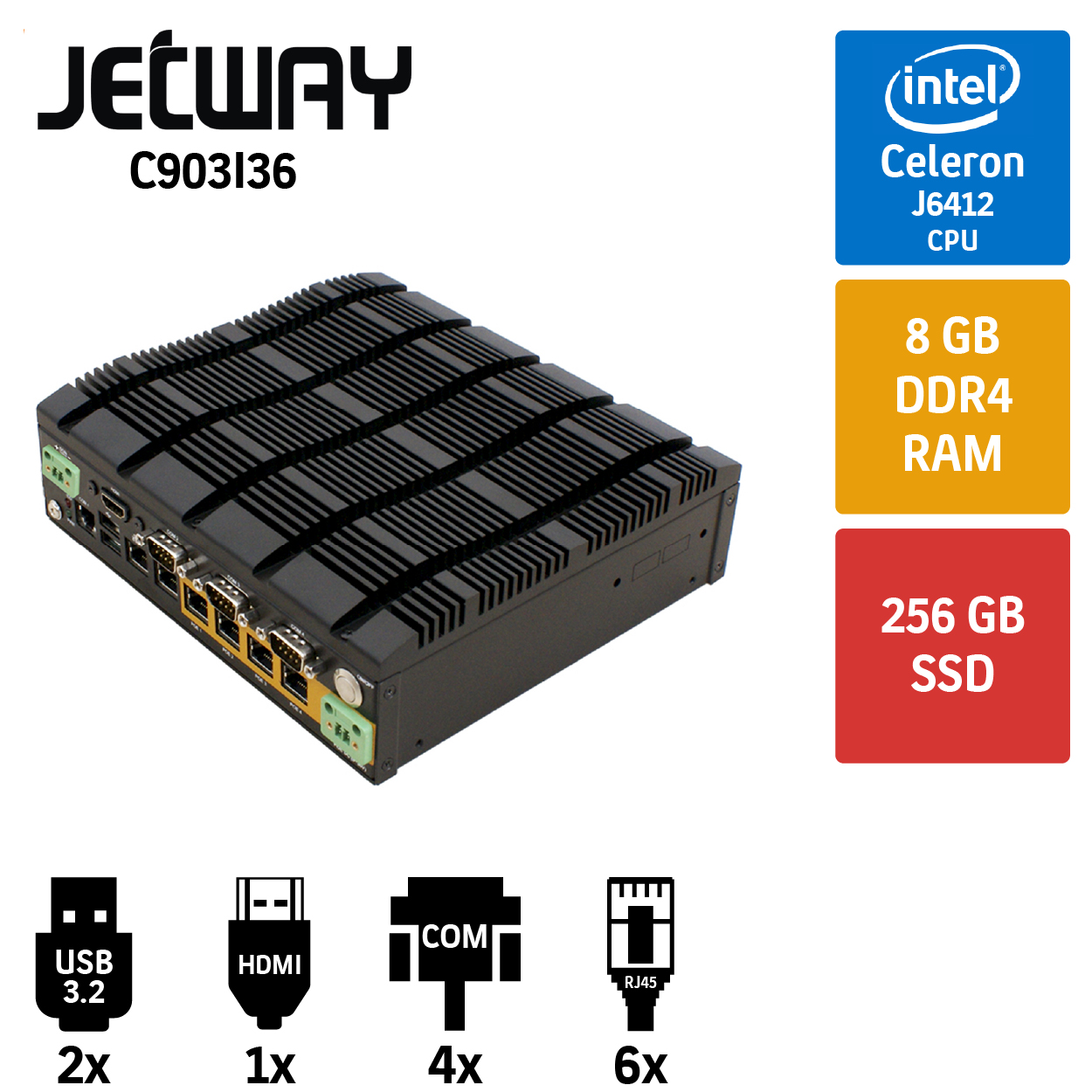

Jetway WAVE C903I36 Intel Celeron J6412 8GB Ram 256GB SSD 6 Port POE 2.5GbE Lan Endüstriyel Firewall Pc

CPU

Intel® Celeron® Processor J Series (formerly Elkhart Lake)

CHIPSET

Intel® J6412 (TDP 10W)

SYSTEM MEMORY

1 x DDR4 3200/2933MHz up to 32GB

DISPLAY INTERFACE

1 x HDMI (Max Resolution : 2560×1600@60Hz)

STORAGE DEVICE

1 x M.2 M key (2242, SATA Interface)
1 x 2.5″ SATA 6Gb/s internal drive bay (hight ≦10mm)

ETHERNET

6 x Intel® 2.5 GbE LAN i225-V (or Intel® I226-V) LAN3/4/5/6 PoE LAN, Support IEEE 802.3af/at (Total Max 100W)

Front I/O

—

Rear I/O

1 x Phoenix terminal block System (12V DC in)
1 x HDMI (Max Resolution : 2560×1600@60Hz)
4 x COM (COM1: RS232-RJ45, COM2: RS232/422/485, COM3/4: RS232)
1 x Power Button
1 x GND Hold
1 x Power LED
1 x HDD LED
2 x USB3.2 Gen.1
6 x RJ45
1 x Phoenix terminal block for PoE (9~36V DC in)

EXPANSION

—

INDICATOR

1 x Power LED
1 x HDD LED

OS SUPPORT

Windows® 10
Windows® 11
Linux

POWER REQUIREMENT

MB : 12V DC-in
POE: 9~36V DC-in for PoE
Adapter : AC100~240V / DC12V_7.5A_90W

MOUNTING

Desktop, Wallmount

DIMENSIONS (W x H x D)

200.0(W) x 180.4 (D) x 59.5 (H) mm (6.0″ x 5.41″ x 1.78″)

GROSS WEIGHT

—

NET WEIGHT

—

OPERATING TEMPERATURE

-10°C ~ 50°C (14°F ~122°F)
(Under the condition of using M.2 interface SSD)

STORAGE TEMPERATURE

-20°C ~ 60°C (-4°F ~140°F)

OPERATING HUMIDITY

10 ~ 90% @ 40°C, non-condensing

ANTI-VIBRATION

—

ANTI-SHOCK

—

CERTIFICATION

CE/FCC Class A , LVD
