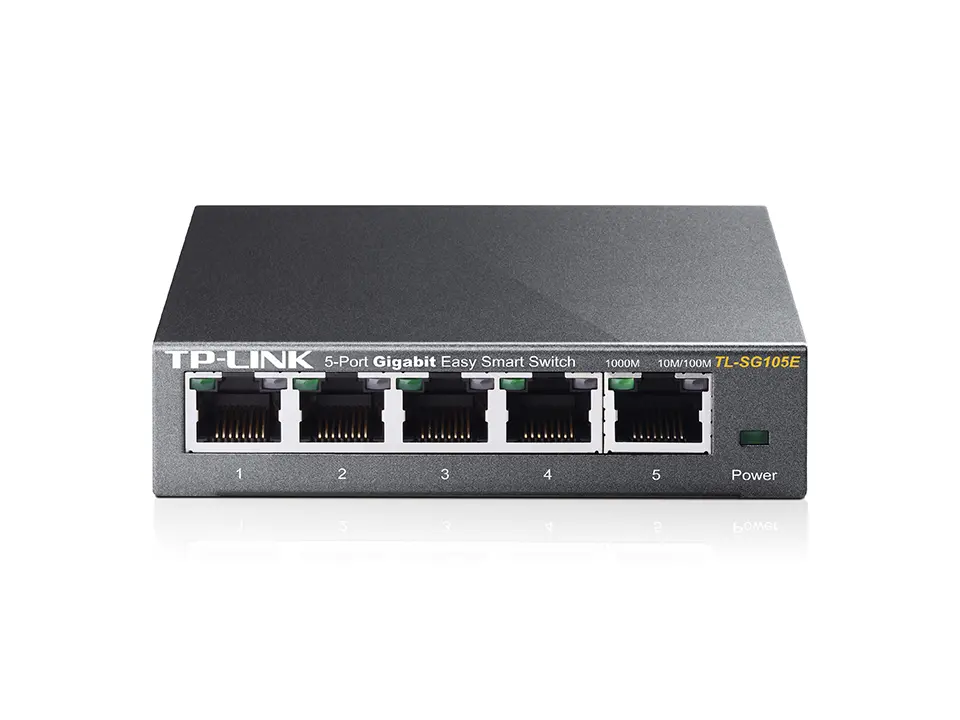

SG105E 5 PORT 10/100/1000 EASY SMART SWITCH

Standartlar ve ProtokollerIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1pArabirim5 * 10\/100\/1000Mbps RJ45 PortsAUTO Negotiation\/AUTO MDI\/MDIXAğ Medyası10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA\/TIA-568 100Ω STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA\/TIA-568 100Ω STP (maximum 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA\/TIA-568 100Ω STP (maximum 100m)Fan SayısıFanlessGüç Kaynağı100-240VAC, 50\/60HzBoyutlar ( W X D X H )3.9 * 3.9 *1.0 in. (100 * 98 *25 mm)Maks. Güç Tüketimi2.82 W (220 V\/ 50 Hz)Max Heat Dissipation9.62 BTU\/hPaket Yönlendirme Hızı7.4MppsMAC Adres Tablosu2KPaket Buffer Belleği1.5MbJumbo Frame15KBQuality of ServiceSupport Port-based\/802.1p\/DSCP priority 2Support 4 priority queuesRate LimitStorm ControlL2 ÖzellikleriIGMP Snooping V1\/V2\/V3Link AggregationPort MirroringCable DiagnosticsLoop PreventionVLANSupports up to 32 VLANs simultaneously (out of 4K VLAN IDs)MTU\/Port\/Tag VLANİletim MetoduStore-And-ForwardSertifikaFCC, CE, RoHSPaket İçeriğiTL-SG105EPower CordInstallation GuideResource CDRubber FeetSistem GereksinimleriYardımcı uygulama sadece Microsoft Windows® platformunda kullanılabilir.OrtamOperating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing<\/ul>
